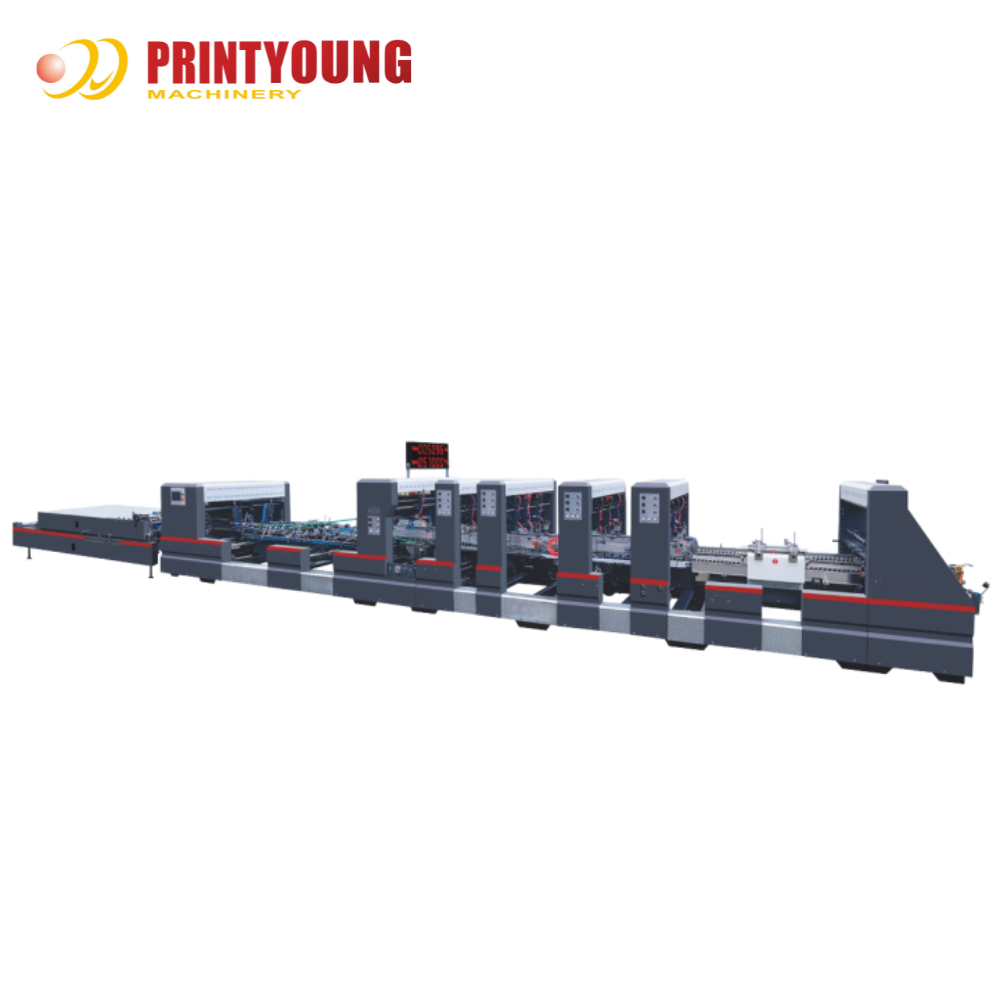

ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine

ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine
Grundlegende Informationen
Herkunftsort: China
Markenname: PRINTYOUNG
Zertifizierung: CE
Modellnummer: ZH-1450XAG
Min Bestellmenge: 1 Satz
Preis: USD 28000 Set
Lieferzeit: 25 Arbeitstage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 10 Sätze pro Monat
Kontakt
Pappe: 210 ~ 600 g/m² Karton Box bilden: einseitig geklebt, vorgefaltet, Boden mit Crash-Lock
Karton-Fütterung: Automatisches Füttern Klebertyp: Kaltkleber
Elektrische Leistung: 30 kW Wechselstrom 3 PH 380 V Gewicht: 6000 kg

ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 0
ZH-1450XAG Folder Gluer
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 1
Features
1.With Several national patents,the performance of the GEN 5 machine is ahead of its peers.
2.Modular structure,different functions can be combined according to customer needs.
3.Functions can be upgraded after purchase.
4.The Multi-motor transmission has strong power,fast speed,and longer service life.
5.Equipped with synchronous belt transmission with high speed and low noise.
6.The upper and lower conveyor belts are powered,and there is no curling phenomenon.
7.The new curved arm bracket has a unique shape and a beautiful appearance.
8.Possible to upgrade to the four six-corner devices at any time.
9.The integrated electrical control box is hidden at the bottom of the conveyor,which saves space.
Technical Parameters
Paperboard
210 ~ 600 gsm paperboard compatible with E/F corrugated board
Box Forming
single side gluing,pre-folding,crash lock bottom
Paper Board Feeding
automatic feeding
Glue Type
cold glue
Electric Power
30kw AC 3PH 380V
Weight
6000 kg
Over Dimension
17.5 * 2.2 * 1.8 m
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 2ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 3ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 4
                                 (I)                                                  (II)                                                    (III)
Box Type
A
B
C(min)
D(min)
Side-glue Box(I)  Flat Box(III)
250 ~ 1450 mm
150 ~ 700 mm
120 mm
50 mm
Pre-fold Box(I)
250 ~ 1450 mm
150 ~ 700 mm
120 mm
50 mm
Crash Lock Bottom Box(II)
250 ~ 1450 mm
150 ~ 700 mm
120 mm

50 mm
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 5
Configuration
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 6ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 7

Paper Feeding Section

Equipped with 3 output knives,adjust the asymmetric length according to the actual sample.The embossing power guide wheel guides the paper output belt,and there are baffles on the left and right sides,which can be moved left and right according to the product style.The vibrating device cooperates with the motor to feed paper quickly, easily and continuously automatically.

Aligner Section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 8ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 9

Pre-folding Section

The first line can be pre-folded at 180°,and the third line at 135°,which is perfectly combined with automated packaging.

Crash Lock Bottom Section

A complete set of front flap bottom locking device to ensure accurate bottom locking action.The segmented upper belt board,combined with a special design,can be adjusted by expansion and contraction according to the needs of the product.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 10ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 11

Lower Gluing Tank

Lower gluing tank is large volume.Easy to remove and clean.Electronic upper gluing system by guns.

Folding and Closing

The Second and fourth folding line 180°.
Folding and closing section transmit from right and left side,the belt speed can be adjusted separately and correct the way of box running to ensure straightly delivery.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 12ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 13

Trombone Section

Up and down belt can be adjusted separately.Equipped with photo electronic counting device and kicking paper device,which can press the paper after accounting and make it easy to pack.Also equipped with feeding paper inspection device.

Transmission

The upper and bottom of the belt are power, and the pressure can be adjusted by the air source.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 14ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 15

Box Squaring Device

Full press section continuously and automatically box collection mechanism that ensures a neat transfer to the press section,guaranteeing a well aligned flow.

Synchronous Belt & Synchronous Wheel

The most efficient mechanical power transmission method currently on the market Reduce noise,reduce wear,and efficient power transmission system.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 16ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 17

Aviation Connector

Easy to install and transport.

KQ Spraying System

Equipped with three guns,convenient in the production of various special-shaped box, gluing quickly and accurately sizing.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 18ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 19

Surveillance Camera

The output of the box can be observed.

Independent Electrical Box

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 20ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 21

Electric Shift Row

Button control shift row,save manpower.

Top LED Screen

Easy to observe the batch situation and production efficiency of the box.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 22ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 23

Shoot the Structure

The counterline of the flat mouth box can be corrected.

Tone Wheel

The local folding belt speed can be adjusted separately to correct the box pair line.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 24ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 25

Human-computer Interaction and Touch Screen

Compared with the traditional button,it can adjust the parameters of the machine more intuitively.

Sponge Belt

It can make the box more stable and tight when the output of the platform.
Option

Spray Gluing System for Cold Glue with 3 Guns

Super fast and no abrasion electro-magnetic non-contact cold glue spray gun,completes precise cold glue dot and line spray gluing.
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 26
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 27ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 28ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 29

Hotmelt Glue System

Special for the box type like files which to be quickly glued and dried(corrugated box),it has features of high stickiness.Quick dry.

Plasma System

It has replaced the traditional function of grinding,able to get rid of the paper surface that is UV coated and laminated;interlocking controlled with the folder gluer on start and stop.
Automatic Box Packing Machine
Box packing machine is a kind of unique multi-purpose tool that can be used to folding the carton,and to make the packaging more easy. collection box for the traditional closed box too late to collect box packing can be used in automatic closing box machine devide, automatic closing box machine design have synchronizer device and the linkage of box pasting machine.
Box samples
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 30
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 31
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 32
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 33
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 34
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 35
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 36
ZH-1450XAG Basic Module Automatic Crash Lock Bottom Paper Box Folder Gluer Machine 37
