Startseite Produktelamellierende Maschine des FilmesFM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function

FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function

FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
Grundlegende Informationen
Herkunftsort: China
Markenname: PRINTYOUNG
Zertifizierung: CE
Modellnummer: FM-390S FM-520S
Min Bestellmenge: 1 Satz
Preis: USD 1500 ~ 1900 Set
Verpackung Informationen: Verwendet eine feuchtigkeits- und stoßfeste Verpackung, die für den Ferntransport auf der Straße und
Lieferzeit: 20 Arbeitstage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 30 Sätze pro Monat
Kontakt
Modell: FM-390S, FM-520S Max. Papierformat: 375 * 570 mm, 505 * 570 mm
Min. Papierformat: 150 * 150 mm Betriebsgeschwindigkeit: 0 ~ 13 m/min
Lamellierende Temperatur: 50 ~ 120 °C Gesamtleistung: 2 kW
Hydraulikdruck: 3 ~ 4 MPa Abmessungen: 1,57 * 0,7 * 1,24 m, 1,57 * 0,83 * 1,24 m
Papierstärke: 125 ~ 350 gsm Pneumatischer Druck: 0,4 ~ 0,6 MPa

FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S Hydraulic Film Laminator
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut FunctionFM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
Features

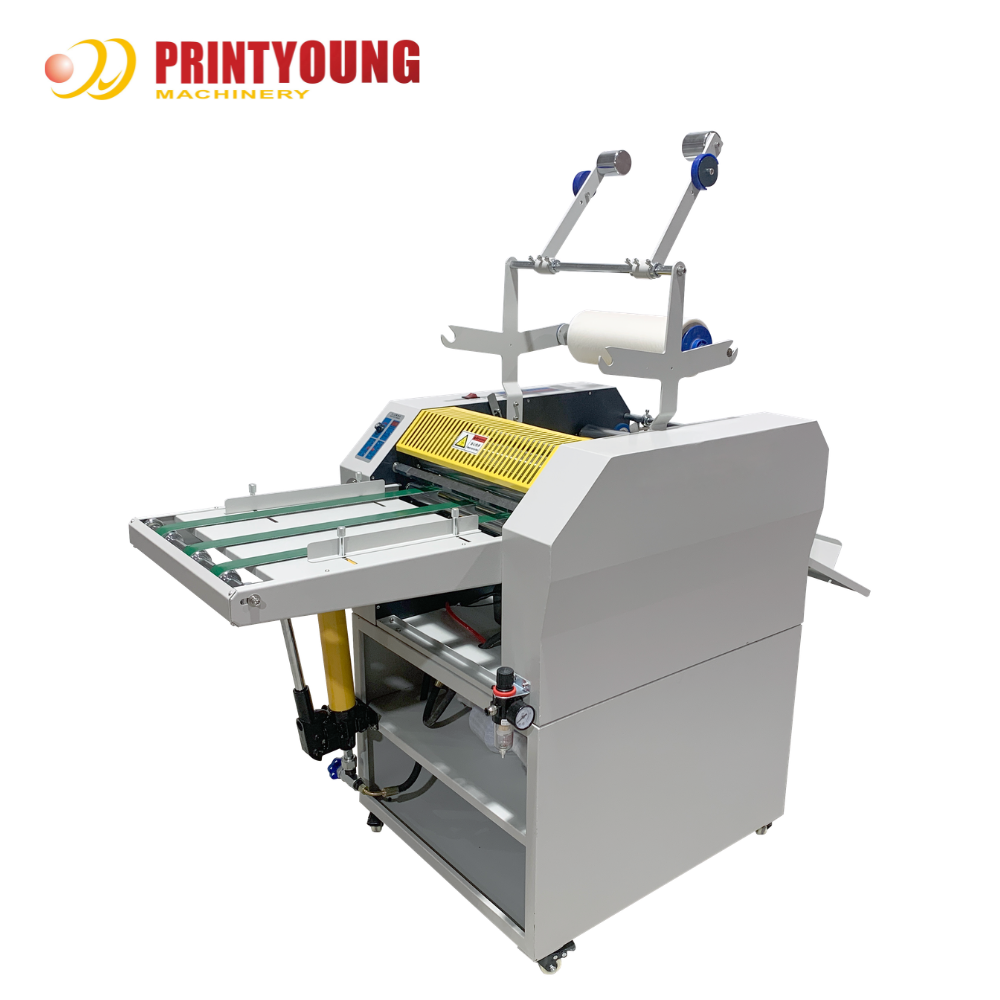

The machine is a semi-automatic oil heating laminating machine.It has a stepless speed governor reducer to adjust the speed and hydraulic pump to provide high pressure. It has double film racks,anti curl device.It can cut off paper andoverlap automatically and colllect papers orderly.The heating roller is treated with high brightness mirror.The pressure roller uses imported silicon material,which is pressure resistant and high temperature resistant and non-adhesive.
Technical Parameters
FM-390S Hydraulic Film Laminator
Model
FM-390S
 FM-520S
Max. Paper Size
375 * 570 mm
 505 * 570 mm
Min. Paper Size
150 * 150 mm
 150 * 150 mm
Operating Speed
0 ~ 13 m/min
 0 ~ 13 m/min
Laminating Temperature
50 ~ 120 ℃
 50 ~ 120 ℃
Total Power
2 kw
 2 kw
Hydraulic Pressure
3 ~ 4 MPa
 3 ~ 4 MPa
Dimensions
1.57 * 0.7 * 1.24 m
 1.57 * 0.83 * 1.24 m
Paper Thickness
125 ~ 350 gsm
 125 ~ 350 gsm
Pneumatic Pressure
0.4 ~ 0.6 MPa
 0.4 ~ 0.6 MPa
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
FM-390S 520S Hydraulic Motor Automatic Paper & Plastic Film Laminating Machine with Heating Auto Cut Function
