YW-1080 Automatic Feeding Paper Embossing Machine

Features

YW-1080 automatic embossing machine with a speed of 6000 sheets/hour.The vacuum pump drives Feida and paper feeding.There is a double sheet control in front of the paper feeding.When the paper is fed with two or more sheets,it will stop automatically.
The embossing part is composed of wool roller and embossing roller.The diameter of wool roller is 350mm and the diameter of embossing roller is 175mm.The paper is pressed out of the grain pattern between wool roller and embossing roller.
Its main working performance is as follows:fine smooth lines can be carved on the upper surface of the pattern roller of the machine,and the smooth lines on the surface can be directly printed and pressed on special paper such as paper,gold and silver card,aluminum foil paper and coated paper through embossing.
Our automatic embossing machine is driven by frequency converter.The whole machine is controlled by PLC.There is a pressure of 50 tons between the two rollers of the machine.

Characteristic:
1.With international leading technology.
2.Stable overall performance,energy saving and consumption,green environmental protection.
3.It has the characteristics of low cost and anti-counterfeiting.

Product Advantage

Difference from traditional embossing machine.

Embossing machine is an ink-free and environment-friendly packaging equipment.It can form refraction lines,frosted lines,ice flowers,laser lines,three-dimensional animation and other effects on paper,gold and silver card,aluminum foil paper,coated paper and other packaging products.It is a good helper in today's packaging and printing industry.

However,the embossing machine uses the optical refraction principle to transfer the required patterns and patterns to paper,gold and silver card,aluminum foil paper and coated paper to form a strong refraction effect,which can make the printed products luxurious,eye-catching,exquisite and far more noble than ordinary printing and packaging.It also has the characteristics of low cost and anti-counterfeiting.The new technology and new products can be widely used in the printing of cigarette boxes,wine boxes,medicine boxes,cosmetic boxes,tea boxes,wall calendars,greeting cards and other packaging boxes.

Contrast with the same type of products

1.Feida is directly driven by servo motor -- (traditional transmission shaft configuration)
2.Fast speed:6000pcs/h (the highest speed of the same type at home and abroad)
3.The embossing force is greater.(the roller is thickened on the original basis to avoid paper bending and more force during paper output.The wall plate structure and thickness are greatly improved.It is a solid structure,which has more use guarantee and safety compared with the structure of other products of the same type)
4.It has double sheet and multi sheet control.(the use of the equipment is safer and more stable,while reducing paper loss)
5.The machine is equipped with ready paper loading,which saves time and improves output
6.Adopt the most high-end electrical equipment.Performance and safety are better guaranteed,walking on the high-quality route.
7.Processing technology:after forging,put it into the baking house for simmering processing.Prevent casting deformation and make the material stronger.

Technical Parameters

Automatic Feeding Paper Embossing Machine
Model	YW-1080	YW-1100
Max. Paper Size	1080 * 800 mm	1080 * 1100 mm
Min. Paper Size	280 * 280 mm
Paper Thickness	150 ~ 800 g/m²
Feeding Height of Paper	920 mm
Delivery Height of Paper	920 mm
Max. Speed	6000 s/h
Temperature Range	20 ~ 120 °C
Total Power	9.5 kw
Machine Weight	3500 kg	3700 kg
Machine Dimension	6300 * 1800 * 1800 mm	6800 * 1800 * 1800 mm
Max. Working Pressure	50 t

Configuration

Feeding Section & Feeder

High speed Feida is directly driven by servo motor (traditional transmission shaft configuration),and some parts are imported and assembled in China;

It has a four suction and two feeding structure with strong paper suction.The suction head can adjust various paper suction angles according to the deformation of the paper,which can better ensure the smooth paper feeding from thin paper to large gram paper jam;

Equipped with Feida head quick adjustment device;

Equipped with 3-channel Feida head anti-collision device to protect Feida head.

Transportation

The paper feeding part is driven by synchronous belt;

The paper feeding accessories are changed to general type,and the paper feeding is relatively stable;

Using servo motor to directly drive Feida,the structure is more stable;

In order to cope with various complex and changeable box shapes of modern packaging,the ultra-small format paper feeding device can easily make up,set the most economical production paper format and greatly enhance the competitiveness.

Embossing Section

The wool roller is made of high-grade wool paper and high-strength hydraulic pressure.The pattern roller is processed by special No. 45 steel and then carved.

Resin sand cast iron is selected for the main engine wall panel and base to ensure the long-term reliable and stable operation of the whole machine.

The driving chain adopts special reinforced chain to improve the accuracy and stability of the machine and prolong the service life.

Delivery Section

The paper is fed into the receiving table by the conveyor belt and automatically drops to the bottom.Two way pneumatic automatic and neat paper receiving,convenient operation and labor saving.

Electric Control System

The advanced national safety standards in Europe and America are adopted for electrical components and electrical circuits.

The electrical cabinet adopts air cooling device to effectively ensure the normal operation of electrical control under high temperature conditions.

The interface controls are integrated,and a large number of electrical switch controls are involved in the operation interface,which is simple and easy to operate.PLC controls the operation and fault monitoring system of the whole machine.

Applications

It is suitable for high-grade wine boxes,cosmetics boxes,drug packaging boxes,food packaging boxes,cigarette boxes,calendar boxes,advertising pictures and other products.

It can form refraction patterns,frosted patterns,ice patterns and concave convex patterns.

It is the most advanced and practical post press processing equipment in the world.

Größe und Tag:

Herkunftsort:	China
Markenname:	PRINTYOUNG
Zertifizierung:	CE
Modellnummer:	YW-1080, YW-1100

Min Bestellmenge:	1 Satz
Preis:	USD 3000 ~ 33000 Set
Verpackung Informationen:	Übernimmt eine feuchtigkeitsdichte und schockdes Verpackung, die für den Ferntransport von Fernstraß
Lieferzeit:	30 Tage
Zahlungsbedingungen:	L/C, T/T
Versorgungsmaterial-Fähigkeit:	30 Sätze pro Monat

Modell:	YW-1080, YW-1100	Max. Papiergröße:	1080 * 800 mm, 1080 * 1100 mm
Min. Papiergröße:	280 * 280 mm	Papierstärke:	150 ~ 800 g/m²
Einzugshöhe des Papiers:	920 Millimeter	Lieferhöhe des Papiers:	920 Millimeter
Max. Geschwindigkeit:	1000 ~ 6000 s/h	Temperaturbereich:	20 ~ 120 °C
Gesamtleistung:	9,5 kW	Maschinengewicht:	3500 kg
Maschinendimension:	6300 * 1800 * 1800 mm, 6800 * 1800 * 1800 mm	Max. Arbeitsdruck:	50 T

	Shanghai Printyoung International Industry Co.,Ltd
	Raum 27B, NEIN, 58 neue Jinqiao Straße, Pudong, Shanghai, China 201206
	86-21-50303885
	pry@printyoung.com

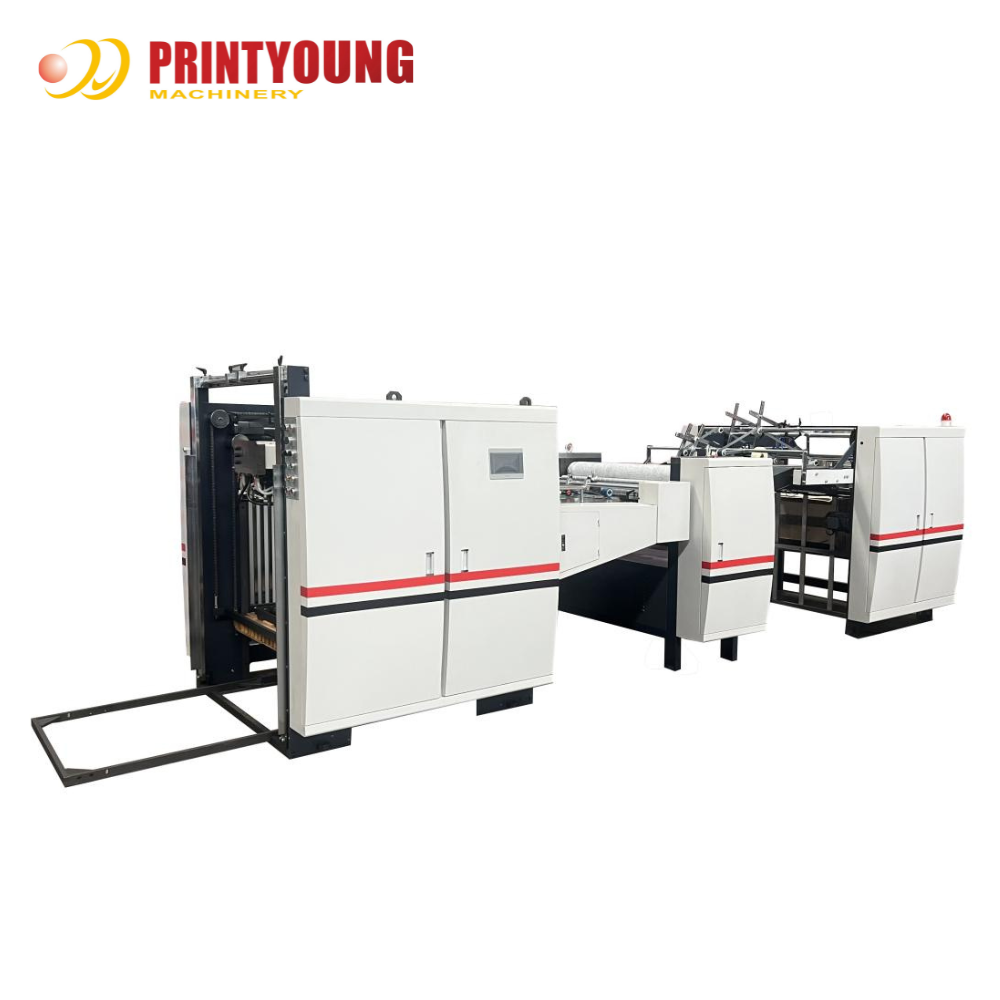

YW-1080,1100 Automatic Feeding Paper Embossing Machine

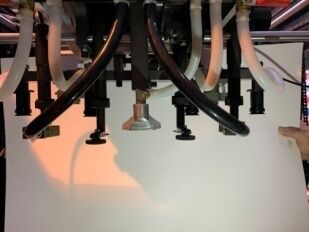

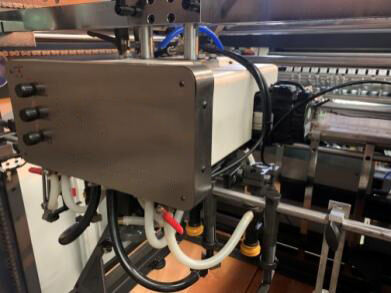

Feeding Section & Feeder

Embossing Section

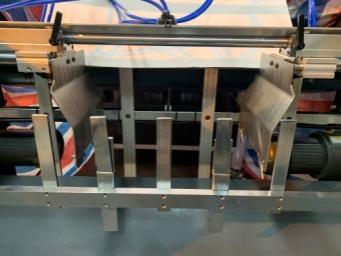

Delivery Section

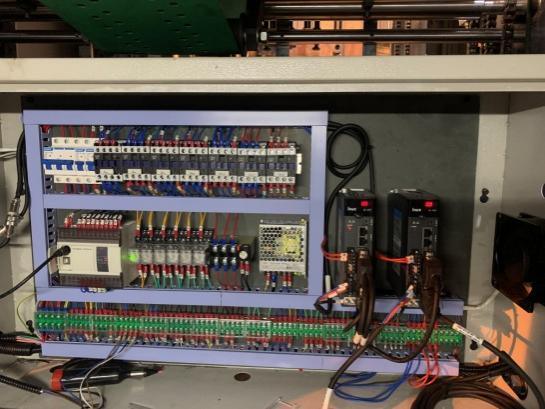

Electric Control System
