Startseite ProduktePapierverarbeitungsmaschinerieCG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)

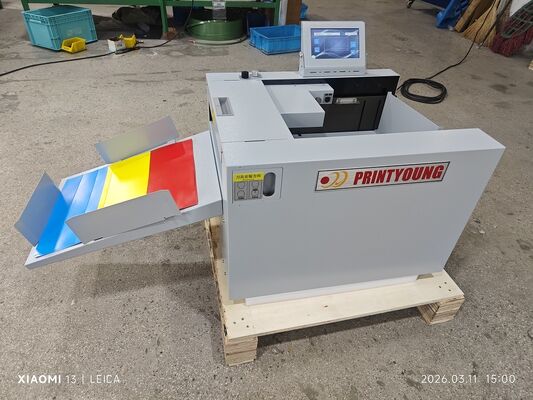

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet)
Grundlegende Informationen
Herkunftsort: China
Markenname: PRINTYOUNG
Zertifizierung: CE
Modellnummer: CG-338
Min Bestellmenge: 1 Satz
Preis: USD 1200 Set
Lieferzeit: 30 ARBEITSTAGE
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 30 Sätze pro Monat
Kontakt
Max. Papierformat: 330 * 3000 mm Zunehmende Dicke: 80–400 g
Dicke der gestrichelten Linie: 80–250 g Zunehmende Datenspeicherung: 32 Gruppen von Einzelblättern
Steigende Zahl: bis zu 32 Stück Erhöhte Genauigkeit: ± 0,1 mm
Einzugsgeschwindigkeit (A4-Einzug): 4500/h Papiereinzugsmodus: Saugfütterung

CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 0

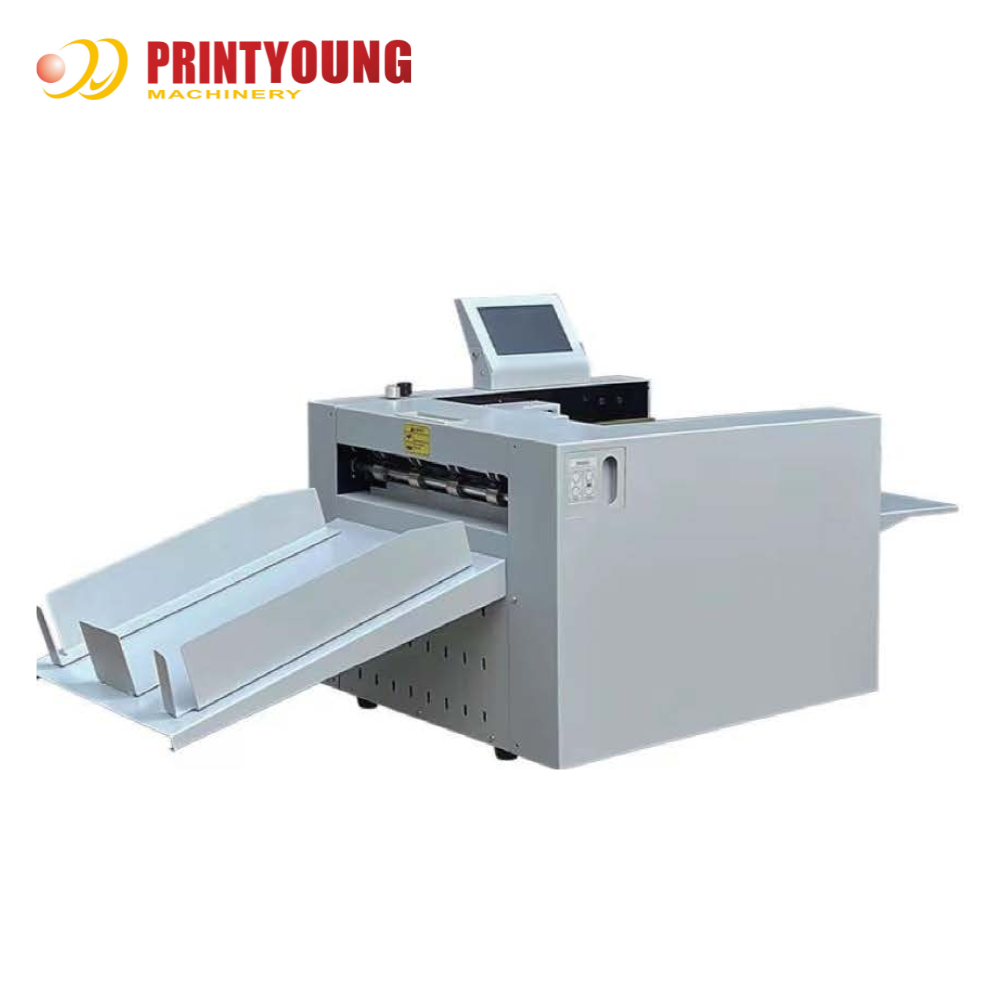

CG-338 Automatic Suction Paper Creasing Machine
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 1
Features
1. This machine uses industrial polyurethane cushion,which makes the indentation action more stable and the indentation line clearer.
2. The unique concave-convex indentation groove design can effectively change the direction of paper fiber and make the indentation line fuller.
3. The indentation strip adopts 6-series Al-mg-Sialloy,and the hardness reaches HB90-100after aging treatment. The knife blade is not deformed and the indentation effect is not out of shape for 3 million times of enterprise fatigue test.
4. It is the first to develop and use AC motor as the main motor in the market so that the mechanical performance of the mainframe does not decline and is stable fora long time.
5. Class2 PCB process and system self-checking and self-correcting process make the indentation accurate and stable!
6. Polyurethane knife gaskef for tooth line blade imported from Japan makes the sawtooth line uniform,uniform,easy to tear and break.
Technical Parameters
Model
CG-338
Max. Paper Size
330 * 3000 mm
Increasing Thickness
80～400 g
Dashed Line Thickness
80～250 g
Increasing Data Storage
32 groups of single sheet
Increasing Number
up to 32 pieces
Increasing Accuracy
± 0.1 mm
Indentation Speed(A4 Indentation)
4500/h
Paper Feeding Mode
suction feeding
Operation Interface
button touch screen
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 2
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 3
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 4
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 5
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 6
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 7
CG-338 Eco-Friendly High-Speed Automatic Suction Paper Folding & Creasing Machine (Motor-Driven Can Add Cabinet) 8

Größe und Tag:

Papier Durchmessers 320mm kann

Maschine herstellend

5pcs/Min Paper Can Making Machine
