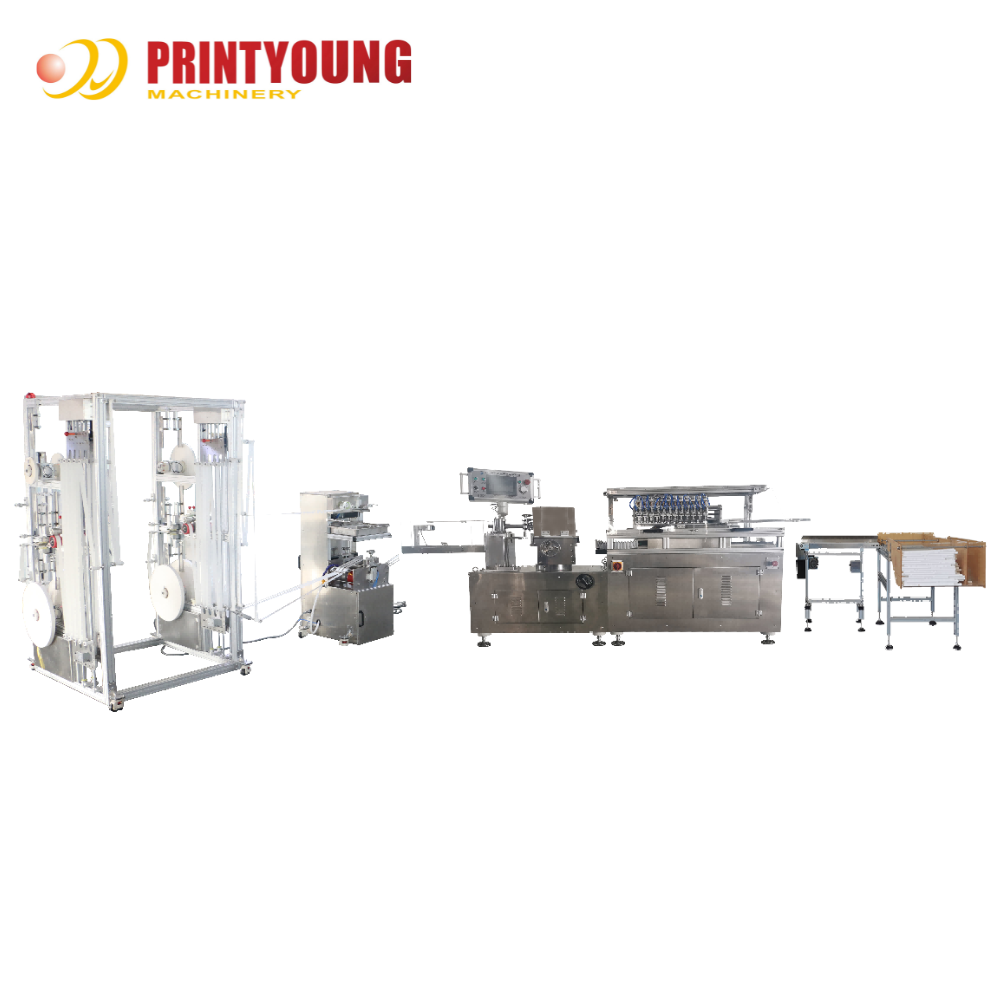

PRY-10 Automatic 30m Speed Paper Straw Making Machine

PRY-10 Automatic 30m Speed Paper Straw Making Machine
PRY-10 Automatic 30m Speed Paper Straw Making Machine
Grundlegende Informationen
Herkunftsort: China
Markenname: PRINTYOUNG
Zertifizierung: CE
Modellnummer: PRY-10
Min Bestellmenge: 1 Satz
Preis: USD 20000 Set
Verpackung Informationen: Übernimmt eine feuchtigkeitsdichte und schockdes Verpackung, die für den Ferntransport von Fernstraß
Lieferzeit: 35 Tage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 30 Sätze pro Monat
Kontakt
Papierschicht: 3 ~ 4 Schichten Max. Durchmesser: 10 mm
Min. Durchmesser: 5 mm Max. Stärke: 1 mm
Min. Stärke: 0,2 mm Min. Länge: 35 ~ 45 mm
Ausgabegeschwindigkeit: 3 ~ 30 m/min Wickelkopf: 2 Köpfe / 1 Stück Gürtel
Schneidmethode: 10 Messer, pneumatischer Antrieb Klebemethode: ein- und doppelseitig
Modus mit fester Länge: Encoder Operator: 1 Person
Wellenbefestigungsmodus: Futter Geschwindigkeitskontrolle: Servoverfolgung
Wickelrollendurchmesser: 195 mm Wickelrollenhöhe: 100 mm
Max. Umdrehungsgeschwindigkeit: 200 U/min Gewicht: 1350 KGS

PRY-10 Automatic 30m Speed Paper Straw Making Machine 0
PRY-10 Automatic Paper Straw Machine
PRY-10 Automatic 30m Speed Paper Straw Making Machine 1
Features
Winding/spiraling different layers paper strip into paper tube with glue.
Multi-cutting knife system,by servo tracking,cut paper tube into small piece of paper drinking straws.
Material:sand-tube paper/corrugated paper/kraft paper/industrial glue
Sub-raw material:may need oil for lubrication and cooling.White mineral oil.
Capacity:
How many pieces straw per minute.
For example: 30m/min, making 8 * 60 mm straws. 30*1000/60=500 pcs/minute.
Technical Parameters
Paper Layer
3 ~ 4 layers
Max. Diameter
10 mm
Min. Diameter
5 mm
Max. Thickness
1 mm
Min. Thickness
0.2 mm
Min. Length
35 ~ 45 mm
Output Speed
3 ~ 30 m/min
Winder Head
2 heads / 1pc belt
Cutting Method
10 knifes , pneumatic driving
Glue Method
single & double face
Fixed Length Mode
Encoder
Operator
1 person
Shaft Fixing Mode
chuck
Speed Control
servo tracking
Input Power
3P / 380V / 50Hz
Main Part Dimension
2250 * 640 * 1600 mm
Land Area Dimension
7000 * 2500 * 1900 mm
Winding Roller Diameter
195 mm
Winding Roller Height
100 mm
Weight
1350 kgs
Main Power
2 kw
Max. Rotation Speed
200 r/min
Torque Output
68 N.m
Hub Drive
2
Configuration
PRY-10 Automatic 30m Speed Paper Straw Making Machine 2PRY-10 Automatic 30m Speed Paper Straw Making Machine 3

Glue Station

1.Aluminum and stainless steel frame;
2.Stainless steel glue pot;
3.Glue recycle system;
4.Lubrication oil roller for inner paper strip;
5.One pair roller(rubber roller and steel roller)for filming glue on paper;
6.1 motor to drive glue roller;
7.Easy to adjust glue quantity by adjust the distance of two roller.

Paper Roll Hanging Bracket with Connecting Function

1.Help paper straw making machine no stop working.
2.Use auto detection:when the paper roll is going to use out,the mechanism will cut the tail ends of old paper roll and connect new paper roll automatically.
3.Smaller dimension,easy delivery and moving to adjust paper feeding angle.
4.Construction simpleness.If paper break,no need to stop to route the paper up and down complicated.
5.Constant unwinding force for the paper rolls,to let paper feeding more smoothly.
6.Our own patent for this connecting mechanism,not copy from others,especially European brands,so no patent problem.
7.Optional choose:4 layers connecting mechanism.
PRY-10 Automatic 30m Speed Paper Straw Making Machine 4
PRY-10 Automatic 30m Speed Paper Straw Making Machine 5
PRY-10 Automatic 30m Speed Paper Straw Making Machine 6
PRY-10 Automatic 30m Speed Paper Straw Making Machine 7
PRY-10 Automatic 30m Speed Paper Straw Making Machine 8
PRY-10 Automatic 30m Speed Paper Straw Making Machine 9
PRY-10 Automatic 30m Speed Paper Straw Making Machine 10
