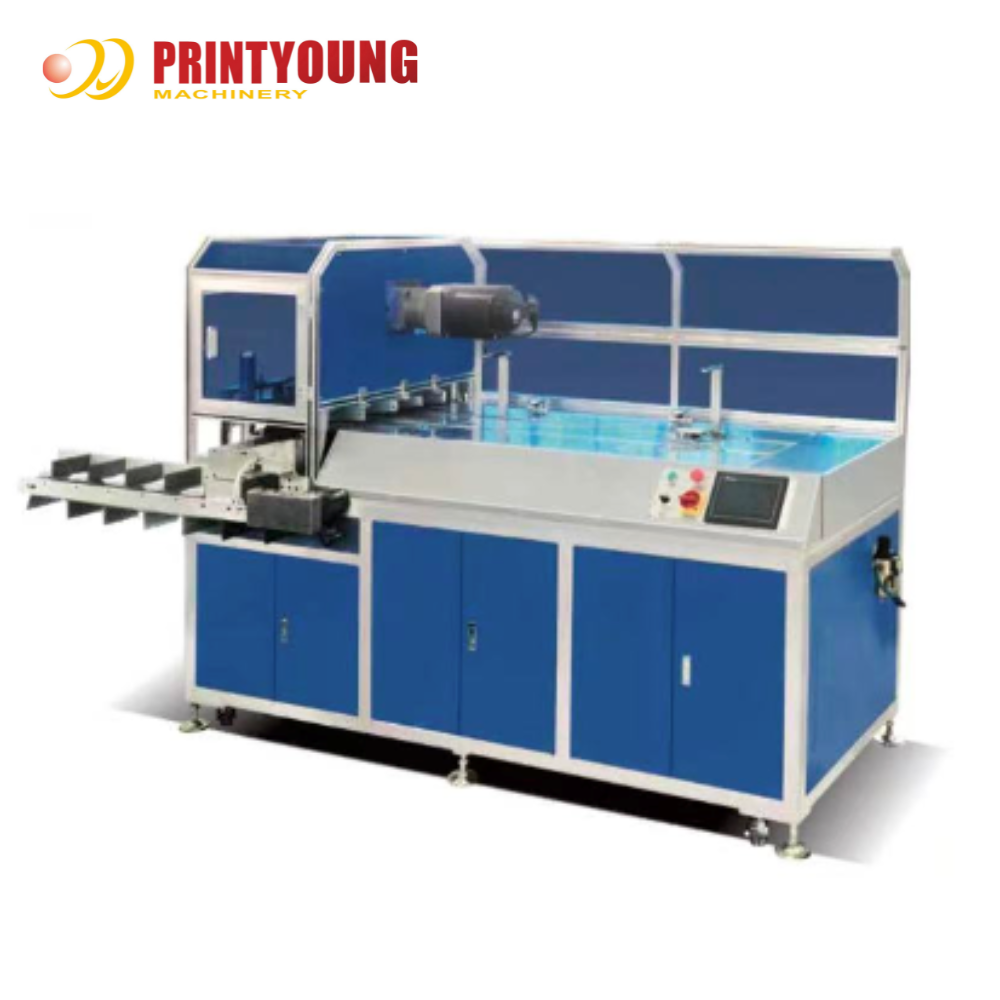

CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine

CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine
Grundlegende Informationen
Herkunftsort: China
Markenname: PRINTYOUNG
Zertifizierung: CE
Modellnummer: CK-760
Min Bestellmenge: 1 Satz
Preis: USD 22500 Sets
Lieferzeit: 30 ARBEITSTAGE
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 30 Sätze pro Monat
Kontakt
Modell: CK-760 Gesamtleistung: 3.5 KW
Gasquelle: 6 kg/cm2 Gasverbrauch: 80 l/min
Gewicht: 850 kg Präzision schlagen: ± 0,10 mm
Ertrag: 500 Stück/Stunde Form der Kontrolle: PLC-Programm + Servosystem

CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 0
CK-760 Cards Die Cutting Machine
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 1
Features
Automatic feeding,fillet shape,round hole positioning,automatic sorting collection,one-time die-cutting molding.
1.With high sensitivity photoelectric sensor and imported ball screw feeding the position parameters of each punching point can be adjusted,and the accuracy is high.
2.Servo motor control punch power,accurate die cutting,low noise,stable power,adjustable punching speed,one time punching of 1-3 pieces,greatly improving the output.
3.The automatic card receiving system realizes that after punching and cutting,the finished products are collected and stacked in order.
Technical Parameters
Model
CK-760
Power Supply
AC 380V 50Hz
Total Power
3.5 kw
Gas Source
6 kg/cm ²
Gas Consumption
80 L/min
Weight
850 kg
Punching Precision
± 0.10 mm
Applicable Materials
PVC, ABS, PET, PETG, paper card, mixed materials
Applicable Layout
according to the customer's requirements
Yield
500 pieces/hour
Form of Control
PLC program + servo system
Number of Operators
one people
Dimensions
2700 * 1300 * 1720 mm
Applications
The machine is suitable for punching and cutting large size panels such as early education enlightenment cards, children's books,wearing ring cards,etc.On the market,the machine is fast,after punching.It is automatically stacked in order,without manual participation;the edge of the card is smooth,and one-time die-cutting is formed.
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 2
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 3
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 4
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 5
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 6
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 7
CK-760 Motor/Engine-Driven Computerized High Productivity Cards Punching Die Cutting Machine 8
