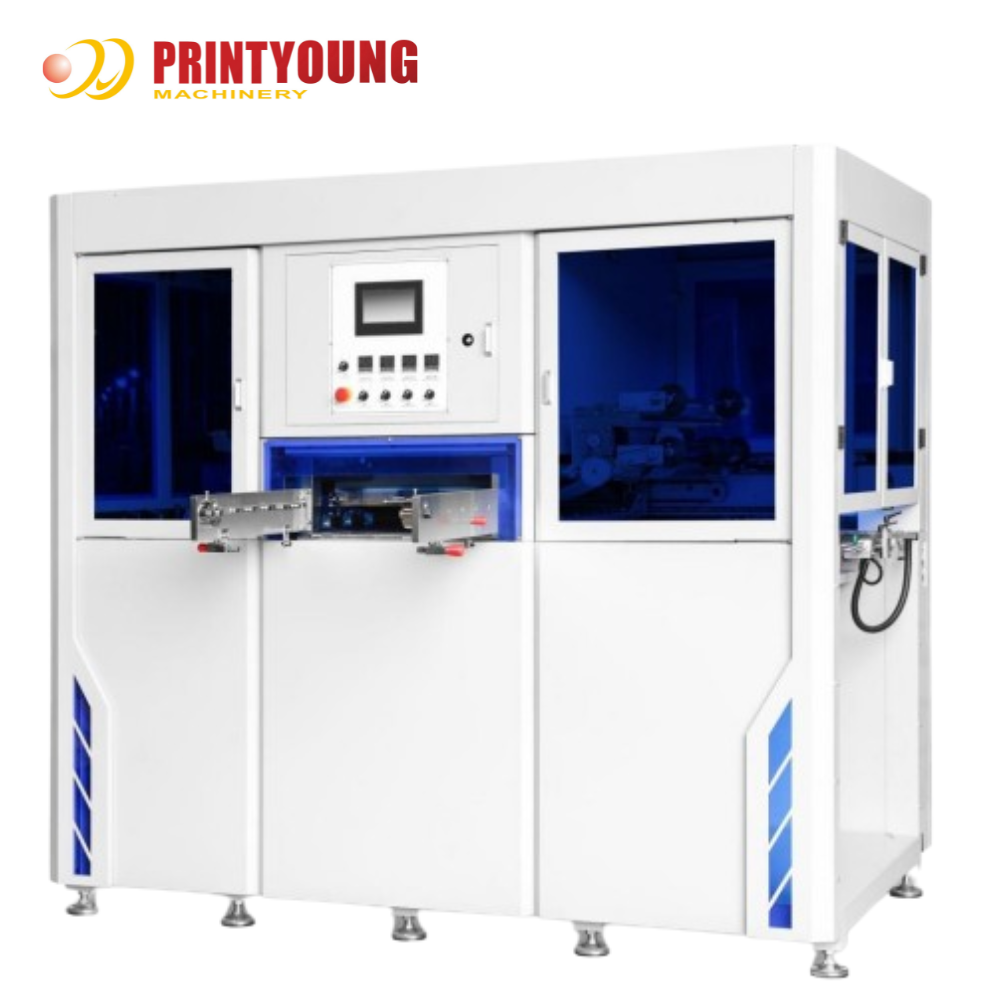

PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor

PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor
Grundlegende Informationen
Herkunftsort: China
Markenname: PRINTYOUNG
Zertifizierung: CE
Modellnummer: Pry-95
Min Bestellmenge: 1 Satz
Preis: USD 27000 Set
Verpackung Informationen: Übernimmt eine feuchtigkeitsdichte und schockdes Verpackung, die für den Ferntransport von Fernstraß
Lieferzeit: 20 Tage
Zahlungsbedingungen: L/C, T/T
Versorgungsmaterial-Fähigkeit: 30 Sätze pro Monat
Kontakt
Max. Einzugspapiergröße: 950 * 650 mm Min. Einzugspapiergröße: 200 * 200 mm
Max. Folienprägegröße: 800 * 530 mm Präzise Folienprägung: ≤ ± 0,1 mm
Max. Arbeitsdruck: 40 t Max. Arbeitsgeschwindigkeit: 1500 s/h
Max. Futterstapelhöhe: 600 mm Max. Folienlänge: 240 m (in der Länge)

PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 0
PRY-95 Hot Foil Stamping Machine
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 1
Features
PRY-95 model features comprehensive hardware configurations adaptable to diverse foil stamping requirements.
(1) The entire machine utilizes Q235 carbon steel.The body wall panels undergo special processing for high strength,permanent dimensional stability,and structural safety. (2) Equipped with imported Taiwanese ball screws to ensure precise movement.The main servo includes overload protection,and the timing belt features fracture protection. Automatically halts upon external impact to minimize damage to the body/feeding accuracy and prevent malfunctions.
(3) Main unit employs imported genuine bearings.
(4) Critical components integrate imported electrical parts(e.g., Omron [Japan],Schneider [France]).
(5) Foil stamping accuracy:±0.1mm;Maximum speed:1,500 sheets/hour.
(6) Features printyoung’s automatic pressure adjustment system for swift and precise stamping pressure control.
(7) Chinese-English touchscreen control interface.
(8) Taiwan,Chinese Air TAC pneumatic components ensure accuracy in every pneumatic motion.
(9) Main PLC utilizes Printyoung Electric for stable machine smooth operation.
Technical Parameters
Max. Feeding Paper Size
950 * 650 mm
Min. Feeding Paper Size
200 * 200 mm
Max. Foil Stamping Size
800 * 530 mm
Paper Specifications
128 ~ 3000 g/m²(cardboard),3.0mm thick grey board
Foil Stamping Precision
≤ ± 0.1 mm
Max. Working Pressure
40 T
Max. Working Speed
1500 s/h
Max. Feed Pile Height
600 mm
Max. Foil Length
240 m (length wise)
Main Motor Power
7.5 kw
Overall dimensions
2500 * 1900 * 2000 mm
Machine weight
3300 kg
Full load power
17 kw
Configuration
Paper Feeding Section
1.Utilizes an advanced control system to regulate the paper feeding speed,ensuring smooth paper transportation.
2.The paper separation part is made of special aluminum alloy for smoother paper feeding.
3.Single-sheet feeding,ensuring stability and accuracy.
4.Servo micro-adjustment technology for the suction paper row,allowing adjustments without stopping the machine.
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 2PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 3
Electrical Unit
1.The human-machine interactive touch interface allows configuration of different long and short pulls.
2.An alarm is triggered if the foil length is less than 6 cm.
3.The computer-controlled foil monitoring system displays the remaining and consumed foil length.
4.Equipped with Schneider electric components (France) and Printyoung PLC control system to ensure stable machine operation.
5.Uses photoelectric components from Japan's Omron and Germany's SICK.
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 4PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 5PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 6

Hot Stamping Section

1.The hot stamping plate uses 7075 high-grade aviation aluminum alloy and surface undergoes hard anodizing treatment,ensuring lightweight operation while maintaining high surface hardness and resistance to deformation.
2.Longitudinal Foil Feeding System:Reduces foil consumption and saves foil replacement time.
3.Dual Longitudinal Foil Feeding Mechanism:Equipped with Hangzhou Zhishan servo motors (China) and Printyoung PLC control system for user-friendly operation.The mechanism is positioned behind the longitudinal foil feeding to ensure smooth and flat foil collection after stamping.
4.Independent Manual Control:The main unit can be operated manually when needed.
5.Parallel Pressure Adjustment Device:Features a flat upper platform for precise pressure regulation.
6.Vacuum negative pressure detection ensures machine operation ceases upon absence of paper.
7.L-Shaped Right-Angle Push Gauge:Accommodates different printing registration requirements for accurate alignment.
Paper Receiving Section
1.Automatic paper aligning device.
2.Photoelectric device ensures neat paper collection.
3.Automatic lifting and lowering control system for the paper receiving table.
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 7
Applications
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 8
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 9
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 10
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 11
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 12
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 13
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 14
PRY-95 Automatic Servo Multicolor Hot Foil Stamping Machine for Paper with Motor 15
